HDD carrying pouch #4

        This project for smaller (SLIM version) external hard disk drive (HDD) casing.

It is special request from a friend with smaller external HDD.
a) Needs is for user friendlier ability to retrieve HDD and interface USB cable in two pocket.
b) Single flap for casing and two VT2 button.


See photo on sample hard disk drive shape and size (126 mm x 78 mm x 14 mm). Actual dimension on "Lenovo HDD" (122mm x 77 mm x 15 mm)

Base on end user specification for his hard disk drive .
        However on hand have two similar external hard disk drive

1) Blue casing of size 113 mm x 76 mm x 12 mm
2) Black casing of size 115 mm x 76 mm x 08 mm

Sample HDD on left side compare to carrying case
for different HDD size and type.

One sample external hard
disk drive 115 mm x 76 mm x 08 mm

Sample testing this HDD

View and trail actual HDD with cable

Measurement on HDD sample

HDD sample right (blue colour) size is
113 mm x 76 mm x 12 mm

* Note :- work in progress and will update later *











* Note:- Work in progress, sorry for the inconvenience.

Update on 10th Nov 2018

 Take measurement and gather idea how to make this project

 Measure the thickness and spacing for edge

 Stitching the side layer to the divider layer

Clean the surface before gule item before punch hole.
Use sandpaper to prepare surface to apply glue, use a straight edge to guide sandpaper.

Apply glue to edge

 cut drain line to prepare for punch hole

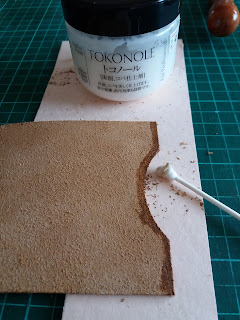

 burnishing the edge for the front layer

 Punch hole done for the edge.

Use wooded block to make punch hole easier

for the edge.
