This is request from a friend with slightly longer charger module unit.
 |
| check on layout |
 |
| Use charger module to check measurement |
 |
| Sew the inner layer to separate mini USB cable and the charger module |
 |
| Prepare for one side layer punch hole |
 |
| Remove these side and prepare to punch the other side edge. |
 |
| tool for punch hole |
 |
| Stitch one side of edge |
 |
| Apply glue with applicator for other side of edge |
tips use scrap leather for cleaning applicator surface to remove excess gule
temporary stitch for holding the other side layer
Update 15th Dec 2018
 |

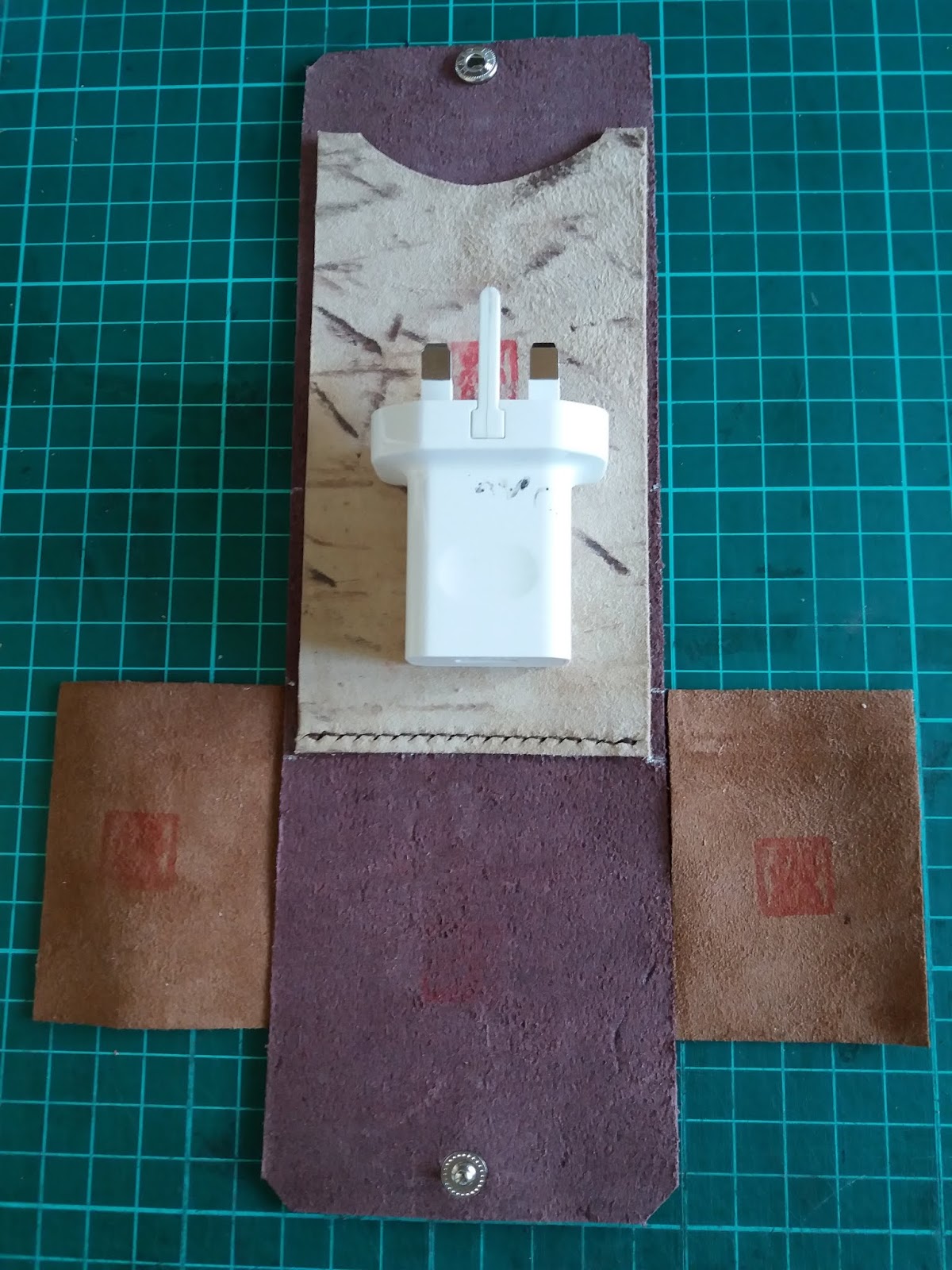

| Verify this cable organizer fit for the charger module and Mini USB cable |
Found this design have some drawback in term of keeping charger module and mini USB cable
1) The divider layer is not practical here. Hence need a different design.
2) The button use here is VT2, it is not sufficient strong to hold the two leather.
✋Please wait and will come back to revisit and add improvement to this design.
= = = = = = = = = = = = = = =
More view on improvement for past cable organizer. As noted the charger module can work out loose. Hence add a button on the tag,
Add a button for the tag. This is to minimize the flap open by itself. 😇
👴- - - - - - End of document - - - - - 👴
