Continue with project for cable organizer part 2 👴
Try slight different design for this project, where the a charger module have a flap with tag to make it easier to use (open and close).
Tips - Found for cutting corner is use round punch and cut off much cleaner corner after bent the flap.
Do take note, the sequence to fabricate this project at times need to take into consideration which come first. This depend on your skill and knowledge which is the best step to take next.
This is no hard and fix rule however you do need take into consideration for all future project and learn from experience.
As some part of assembly process need certain part to assemble ot punch hole for button and burnishing certain hard to reach edge.
At time the actual part need on hand to confirm it position and size for project.
Update 12th Dec 2018.
Continue with cable organizer project. Slight difference in design for the charger module and mini USB cable pouch.
Notice the flap is cut slant line and tapper at the end.
It is better to pre punch hole before assemble to make it easier to punch multi layer for project.
Close up view on project, is to cut a hole at corner which make it easier to fold the flap part.
This how we cut the line and take note of the round hole for the corner part. It show a cut of 8 cm is required.
Use the charger module to check it fit and meet it requirement.
To cut the tight edge for "drain" and because the layer is thin hence use a base leather layer to make it easier to use the tool to cut drain line
Update 13th Dec 2018
After making use of this cable organizer, have some shortcoming, the flap can work itself loose as there is no device to hold it in place.
So have to investigate and think of other idea how to overcome this minor shortcoming.
Looking into way on how to fasten the tag to minimize it work out loose over time.
This is how the tag is pull to uncover the flap. This same tag is to assist insert the flap when closing.
A suggestion from friend on future project.👦
Another idea was to create a new design cable organizer which both cable and charger module are encase all in one. This is suggestion put forward by a friend after view current cable organizer.
👀 This is another project to consider for the future..
End of document.. enjoy viewing project 👲
Try slight different design for this project, where the a charger module have a flap with tag to make it easier to use (open and close).
Tips - Found for cutting corner is use round punch and cut off much cleaner corner after bent the flap.
Do take note, the sequence to fabricate this project at times need to take into consideration which come first. This depend on your skill and knowledge which is the best step to take next.
This is no hard and fix rule however you do need take into consideration for all future project and learn from experience.
As some part of assembly process need certain part to assemble ot punch hole for button and burnishing certain hard to reach edge.
 |
| Cut bottom corner for charger module |
 |

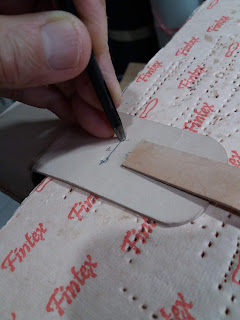

| 3.5cm with cut line drawn |
 |
| Add tag strap on the flap part |
 |
| Insert tag under flap |
 |
| Punch hole to hold strap for tag |
 |
| Tips - to remove hole punch tool from leather by using the chisel side edge |
 |
| Stitch first hole |
 |
| loop twice for first hole |
 |
| Left most is 1st version, middle is 2nd version Right most is 3rd version |
Update 12th Dec 2018.
Continue with cable organizer project. Slight difference in design for the charger module and mini USB cable pouch.
Notice the flap is cut slant line and tapper at the end.
It is better to pre punch hole before assemble to make it easier to punch multi layer for project.
Close up view on project, is to cut a hole at corner which make it easier to fold the flap part.
Use the charger module to check it fit and meet it requirement.
To cut the tight edge for "drain" and because the layer is thin hence use a base leather layer to make it easier to use the tool to cut drain line
 |
| First to temporary hold the edge for the bottom part to enable easier punch hole for both side. |
 |
| Verify charger module tight fit |
 |
| Punch hole along side edge |
 |
| Cut slot line for the tag part |
FRIEND REQUEST project - 11th Dec 2018
This a request from friend for his mobile phone charger module. This unit is longer compare to Samsung J5 model mobile phone charger
Update 13th Dec 2018
After making use of this cable organizer, have some shortcoming, the flap can work itself loose as there is no device to hold it in place.
So have to investigate and think of other idea how to overcome this minor shortcoming.
This is how the tag is pull to uncover the flap. This same tag is to assist insert the flap when closing.
A suggestion from friend on future project.👦
Another idea was to create a new design cable organizer which both cable and charger module are encase all in one. This is suggestion put forward by a friend after view current cable organizer.
👀 This is another project to consider for the future..
End of document.. enjoy viewing project 👲
