Non Leather repair #22 (Dining chair repair)
This is about a repair job on dining chair for daughter's house furniture.
One of the dining chair was broken, center part sink in.
One of the dining chair was broken, center part sink in.
Closer view on extend of damage on chair.
Use vacuum cleaner to remove small parts and remove dust.
Use vacuum cleaner to remove fine dust on bottom cover.
Cut and add wood support to push the soft board to it original position.
To be continue when more update is make available.
Update on 10th July
Tools for repair chair.
1. Electric drill
2. drill bit with countersink
3. Wood glue
4. long screw driver
5. countersink screw
Checking on wood support under chair.
Use vice to hold wood when add glue and screw to "H" support
View of chair bottom where the "H" wooden support is added to give better support for soft board.
This is how this chair was repair and put to service.
Update 13th Nov 2020.
Another dinning table chair need repair. This unit have two issues 1) seat collapse and 2) one of leg is defective, broken nut on the leg.
1) Seat have collapse and remove chair's bottom cover sheet, it can be seen the soft board have give way.
* Notice one of the leg have broken nut embeds on leg and was remove.
One of the inserted nut is broken hence screw was loose.
This leg is shaky need to replace with a longer screw to secure leg properly.
This repair use two piece of scrap wood to give sufficient support to soft board.
Recommend to mark on chair frame support to define the location for support beam. It is also to cut material to match the frame.
As the shape of the frame is trapezoid in shape it make cutting to be more challenging.
Hence the position mark help to ensure if fit and match the wooden edge.

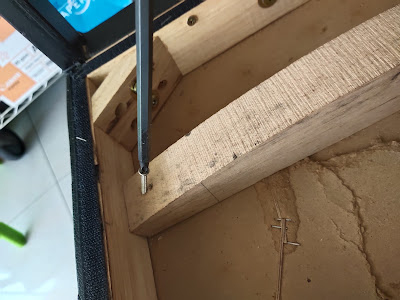

Use a very long wood screw to secure to chair's frame is equally challenging task.
In this case the screw is 4 mm and drill bit is 3.5 mm.
The long screw need to be careful when securing it. If exert too much force it can bent.
Try to slowly turn screw and unscrew to create a thread on the wood and progressively way.
Other safety to look out not to injure your hand palm while tighten screw.
End of document 👴
