HDD carrying pouch #6

Try new design for HDD carrying pouch #6

Past post on Hard Disk Drive pouch are as follows:-

1) HDD carrying pouch #5 (post on 12^th Nov 2018)

2) HDD carrying pouch #4 (post on 09^th Nov 2018)

3) HDD carrying pouch #3 (post on 12^th Oct 2018)

4) HDD carrying pouch #2 (post on 05^th Oct 2018)

Try changes the design where the HDD (Western Digital model MY PASSPORT) .

Changes instead of side way insert the HDD into pouch, top down .

The cable pouch is attached on the rear of HDD pouch and use the unique leather edge for closing.

Added a tools list for beginner to view.

item 1 steel ruler 24 inch

item 2 plastic mallet

item 3 burnishing gum (TOKONOLE)

item 4 glue

item 5 round hole punch

item 6 Number size 3 awl

item 7 thickness gage

item 8 white marker pen

item 9 blue maker pen

item 10 Spatula slant edge

item 11 screwdriver

item 12 Spatula straight edge

item 13 steel ruler 6 inch

item 14 thread sniper

item 15 cutter

item 16 Thread cutter

item 17 4 mm punch set

item 18 4 mm punch set

item 19 lighter

item 20 Needle pad

item 21 Die set for VT5 button

item 22 is thread

item 23 and 24 part of punch set 4 mm spacing

item 25 compass

item 26 edge beveler 2mm

item 27 a) Skiver machine b) set of roller of different width

item 28) wooden burnisher

item 29) Hand press for button and VT5 die set item #21 (refer to top photo)

item 30 various type and size paper clips

Make measurement on leather materials to see it fit project.

Note:; create weigh by using old water tap and attached to plywood. Useful to hold big piece leather when cutting.

Tools use to mark and cut project leather to size.

Marking with pen and rules

cut strip for the edge

Cut two side strip to be stitch later.

Add a small strip of harden cloth for the HDD

Stitch one side of strip, so to position the strip in position

Use clip to hold them in place before punch hole.

It better to attached for one side first.

Use the unique edge shape as part of the cable interface pouch.

Note this not a final stitching thread on pouch but to hold project, side strip in place and position to verify.

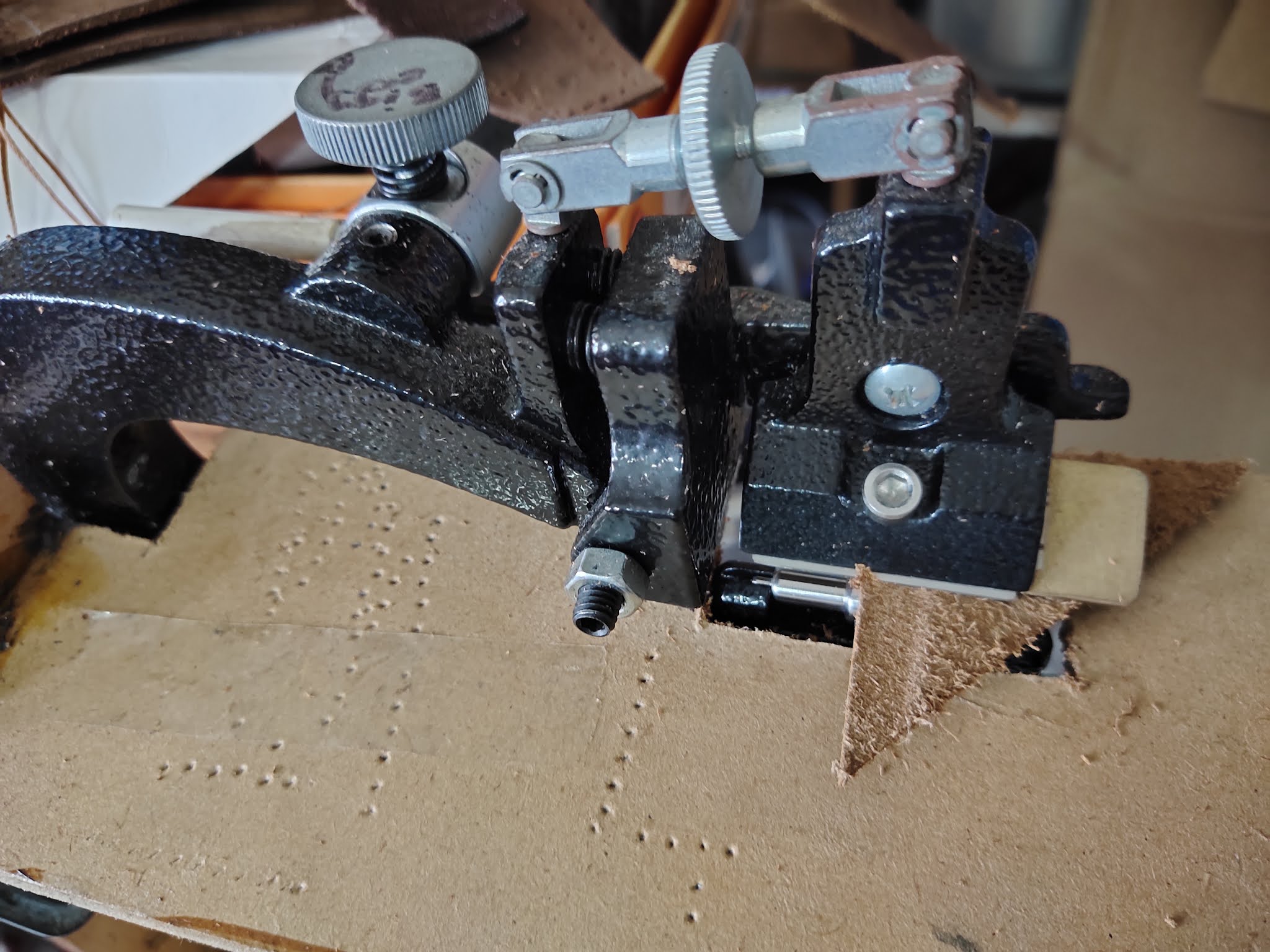

Use a scrap leather for skiver machine to ensure correct required thickness.

The scrap leather is the triangle is to verify correct thickness.

Do take note I have use some thread to hold in place the side strip (see the bottom stitch thread is to hold in place.

This to allow the rear pouch layer to be punch hole to assemble.

Skiver machine is use to remove about 3 mm thickness on three side of edge to do stitching.

Tips:; before skive the edge use a scrap leather to check and set correct thickness to shave off.

Tips:- At time after skiving the thickness might require a sharp blade to trim thickness on edge.

Use cable interface to see it can fit in.

Add button for cable pouch.

Tools use for this work.

This how the bottom part of cable pouch are stitch.

Method to stitch the edge of side layer.

How the cable is store

Overall view of inside of pouch

= = = = = = = = End of document 👴 = = = = = = = =

Special request leather project - Cerebral Palsy training shoe (Part Two)

Delay in project was due to several factors, part one was posted on 18th Nov 2019 was to confirm the template was applicable.

Since last meet with user recently have gather more input and feedback. Then come the final adjustment and idea was this new design for the shoe.

Original paper template, a few changes and placement of hook as per feedback or input.

Request for slightly longer strap for all. Request use the similar strap use web strap found on backpack bag.

Share some tools use for this project

Place paper template on leather surface to gauge the required size to cut.

The seal stamp is use on the strap.

Cut leather to support strap

This how the three strap is attached with leather piece

Use paper clip to hold it when apply glue on strap

Draw line for guide sewing

Use sewing machine.

Sewing machine setting

Cut shape for the heel end

Work still in progress.. please wait for more update.

End of document. 👴 👷

Leather Repair Project Part #1 (leather executive bag)

Leather repair (Friend's Leather Executive Bag) Part #1

A friend leather bag was send for repair evaluation, this expensive executive leather bag a several worn off parts.

Primarily the following defect was noted.

1. The leather handle part was worn off with broken leather material.

*Note:- however it was great challenges job after opening it up the flap, to repair on hand handle, see sub part 1a) to 1e)

1a) The broken leather need to replace rivet holding the handle.

1b) New rivet needed to replace lock mechanism the old rivet (have challenge to find replacement).

1c) Need to replace leather support base and leather strap and hand wrap initial finding saw stitches on handle leather peeling off and on strap. Base to brass "D" clip is worn off.

1d) During repair handle noted the internal material is worn off. this pose new challenge.

2. Some part of the edge was worn off especially at bottom corner part of bag. Certain part thread is missing and split between edge.

3. The latch lock need to replace with original rivet type and colour (it current use blind rivet)

4. Overall leather surface is dry and sign of wear and tear. Leather need to rub olive oil as the some part of the leather is very dry, small crack line. Cleaning was done to remove dirt and dust before applying oil.

5. Sourcing for original parts is real challenging as these material, texture, quality, thread, tools and etc. This poses great challenge and great resource to purchase and source for closes alternative materials to match the repair product. This is some road block and pose difficulty and time consuming at time exhausting. However this is part a parcel for any repair work is getting the correct parts with same specification is very demanding.

This is how the rivet is replace for the lock latch see item 1b)
