Non Leather repair #20 (Instant thermal Pot)

            Non Leather repair #20 (Instant Thermal Pot)

The instant thermal pot on/off intermittent cannot hold at "on" position. Finally found time to look into unit issue. Manufacturer is under SEERS, it use semiconductor technology to transfer heat
( Peltier – Thermoelectric Cooler Modules )

Discovered on/off push button is broken into two parts (top and bottom portion of switch) and need to press manually .
Apply two ton glue and use cable tie to secure for it to cure.

 Bottom label indicate the model.

Remove top panel to gain access to on/off button









To be continue..please wait

Update 20th Nov 2019.

Top plan  view, note on/off button is top

Remove water inlet funnel

Remove wiring from switch. Notice the bottom part of switch is hanging on air

Hold it position before apply two ton epoxy glue, I use a small cable tie to ensure limited movement while epoxy guile take time to cure.

Verify unit is working after leaving overnight for epoxy glue to cure.

Note the push on/off button is very special design to fit in the thermal pot.







Update 14th Jan 2020.

Just purchase a new on/off switch and notice the new switch have a small metal bracket underneath to give a better support and less stress when user press switch button.


                                       End of document 👴

Special request leather project - Cerebral Palsy training shoe (Part One)

Special request leather project - Cerebral Palsy training shoe (Part One)

Meet a friend which make this special request. a training shoe for her daughter, as he encounter problem to customize a device to wrap around her daughter's shoe to be use as part of her daily physio therapy.

After a recent discussion with friend to find out his needs , sharing idea and exchange inform and gather input what is the basic requirement.

Have obtain input and inform as to how many "D" ring required and location to ensure the physio therapy to be more effective and help her daughter.

Share these idea after we share these photo and picture.. hence still learning what work best for this case.

What you see here is just a trail version and I use this to learn how to make a better project that can help and be effective tool for physio therapy.

Try the different way to create this project, what you see is what you get and result is very rewarding.

Note the foot size 32, but the whole idea to to practice and when the actual shoe is available.

Learning how to wrap.. take time that why practice make perfect.
I am still learning phase and try and error will occur which is normal process of training and learning cycle.

Bottom and side view

Top rear view

Top Front view

  End result of the design.. hence need to show to friend to get his feedback and approval as he know better them me in this situation. What is best or required for her daughter needs is very important and help get a better outcome.

Hence it is very important to see the other person needs and desire and hope this project will succeed and deliver is very important for have effective physio therapy.

Some of tools for this project. Note there are other tools but was not display here.











To be continue as more inform or idea are make available.
However for those interested on this project please share with us, if you better experience on this please share your knowledge and best practice. Thank you.


               End of document 👴👷👶

LeatherMan multi function Sheath #2 Part Three - レザーマン 多機能シース #2 パート 3 - - LeatherMan 多功能护套 #2 第三部分

LeatherMan multi function Sheath #2 Part Three

レザーマン 多機能シース #2 パート 3

LeatherMan 多功能护套 #2 第三部分

This part three is about making the belt holder to attached Leatherman sheath to belt. The original design have some short coming, if you sit down the sheath cannot move freely base on the design. このパート 3 では、レザーマン シースをベルトに取り付けるためのベルト ホルダーの作成について説明します。元の設計にはいくつかの欠点があり、座るとシースが設計上自由に動かなくなります。

第三部分是关于制作皮带固定器，将 Leatherman 护套固定到皮带上。原始设计有一些缺点，如果你坐下，护套就不能根据设计自由移动。



However this sheath have a round pad attached to main body. It allow the whole sheath to move with it intention to allow free movement when user stand or sit or other posture position as it does not restrict it movement. しかし、このシースには本体に丸いパッドが付いています。これにより、シース全体が動きを制限せず、ユーザーが立ったり座ったり、その他の姿勢を取ったりするときに自由に動くことができるように意図して動きます。

但是，这款护套在主体上附有一个圆形垫。它允许整个护套随之移动，目的是让用户在站立、坐着或其他姿势时自由移动，因为它不会限制其移动。

*Note:- Velcro surface have the softer part attached to the belt portion. While the rough Velcro side are attached to the round pad.

Allow the glue to be cure before stick and ensure better adhesion between two layer.

Some of the tools used for this project.

Stitch one part of the side

Punch hole for tight edge, try use a wooden block (height depend on project) to raise for better position when do punching hole.

How to punch the leather and Velcro for the round pad

The leatherman sheath is on the right side

= = = = = = = = = =  other part of belt holder = = = = = =

Some of the tools for this project, the belt holder
needs these tools to punch a 7 mm hole on either side and straight edge cutter



It help is the line drawn to aid punch hole and cut a straight line.
The slot cut off is to match 40 mm belt .

The real challenge is how to cut a straight cut to match the round hole?
















Update 14th August 2020

Feedback recently from user, is this design the sheath mounted with Velcro is not secure.

Hence need to have a different design to suit this case

          End of document  👴

Small Bag (for kid bag)

Small Bag (for kid bag)
   Trying out make small bag for my grandson.
The challenge here is the round corner cutting and stitching at edge.

basic tools required for this project

The round corner and how this type of punch for straight edge

How to attached the other side of bag

Way to hold it in position and try use as many clip along the round edge

 It important before glue get the estimate location marking to make life better for alignment. As you know leather is like cloth it soft and flexible and stretchable. This pose some challenge in attaching the two different piece together

One technique is to carefully line up and careful o do it slowly and steady..




                                           End of document   👴 < . . < 👶

Leather Project # 10 (Common Seal)

Leather Project # 10 (Common Seal)

This project is to create a "forest" logo using a common seal press to create a positive image of logo. Can you this to attached to big leather project to make it looks better and branding in a way.

The strap attached was to hold the lever over extended period.
Typical duration is about 0.5 hour to 1 hour depending on leather type

Do alignment marking for common seal press

 Trying out different alignment point to observe the result

Wet leather before insert

Do read this post (Leather Project #6......Part 1 and Part 2 ) with regards to and before this common seal press was ordered. It need to design the logo, it is another learning thing on Adobe Photo Shop and Adobe Illustrator.

Leather project #6  Part 1 (Order a Mould for emboss LOGO)

                        End of document 👴👲👷👶

LeatherMan multi function Sheath #2 Part Two

           LeatherMan multi function Sheath #2 Part Two

 Sharing the step to make Leather man sheath.

Apply glue on both leather layer. Allow sufficient time for glue to settle before attached both  layers.

This way to use roller to better glue adhesion between two layer .

Marking edge line with tool before punch hole

This is how to punch hole before stitching after glue harden.

Way to hold punch hole tools.

How the draw line at edge make it easier to for alignment and correct place with punch.
For this case use a wooden block to raise the level so it is easier to punch the edge

Prepare for adding a round layer to which Velcro is attached.
The purpose of rivet is to allow the sheath to move around.

Once rivet is complete attached Velcro (rough side of Velcro)

This is how glue is apply to both layer

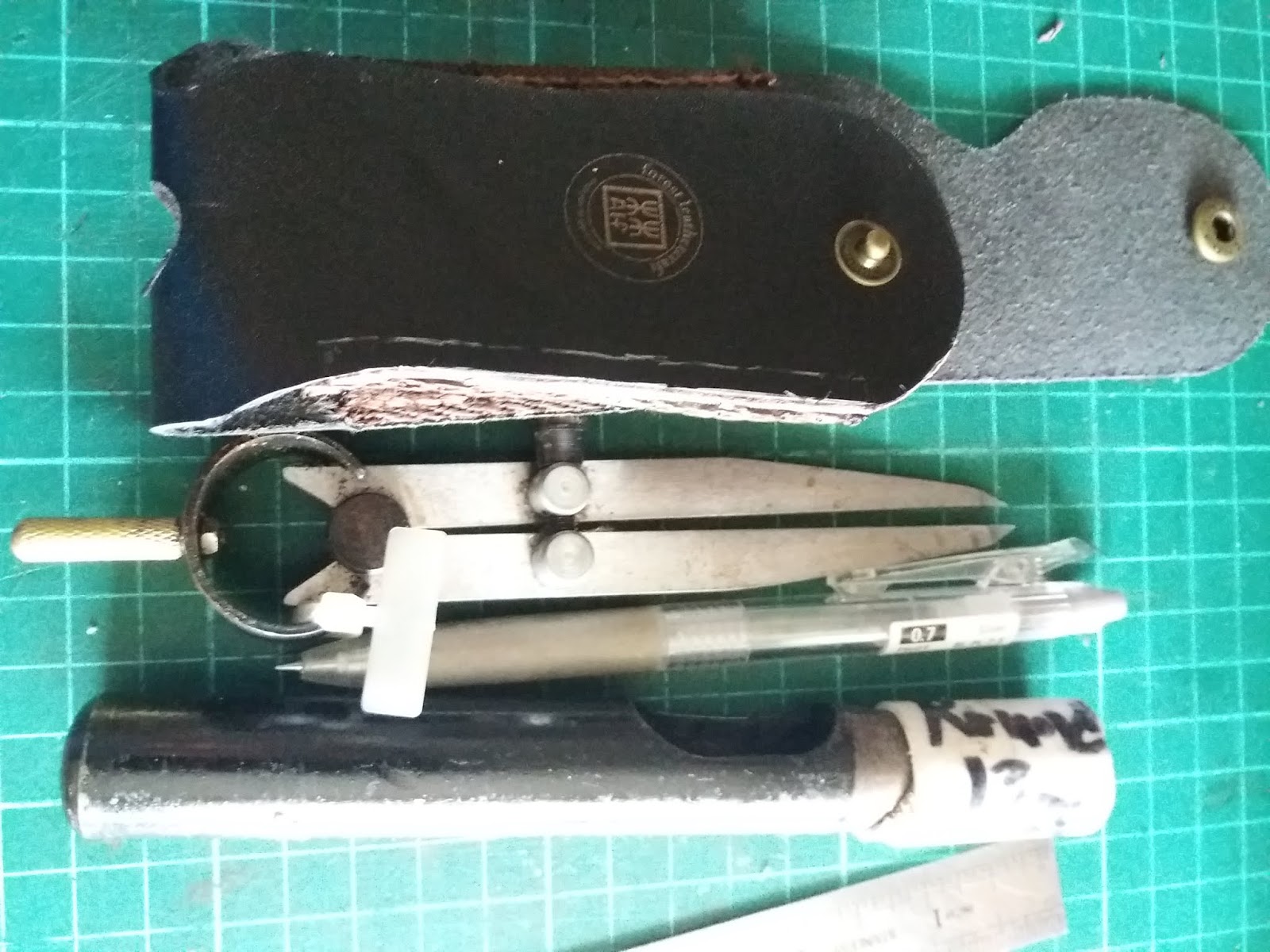

This to show sone of the tools required to use.

This is how the stitching pony tool to help in stitching.

Another view of the stitching pony












                      End of Document 👴
